3015-F (Toyo) |
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | 3015-F | |
| Hersteller | Brand | Toyo | |
| Vergleichstypen | Substitudes | KW-515 | |
| Symbole | Displayed symbols | 7 Segment, PR | |
| Symbolhöhe | Symbol height | 9mm (0.36") | |
| Abmessungen | Overall dimensions | 22mm (0.87") X 11.5mm (0.45") X 9mm (0.36") tall | |
| typ. Betriebsspannung | typ. supply voltage | V | 5 |
| typ. Strom pro Segment | typ. current per segment | mA | 8 |
| Sockel | Base |
16-Pin DIP, pin 1 & 16 zeigen nach oben/ 16-Pin DIP, pins 1 & 16 at top |
|
| Fassung | Socket | 16-Pin DIP | |

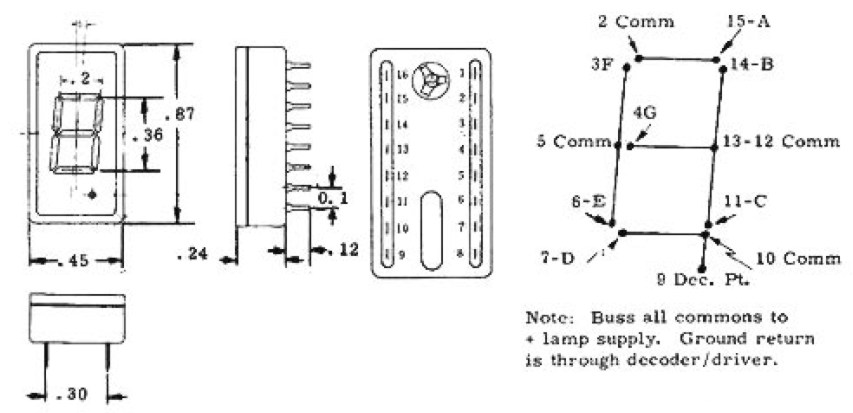

Pinout/ Outline:
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
