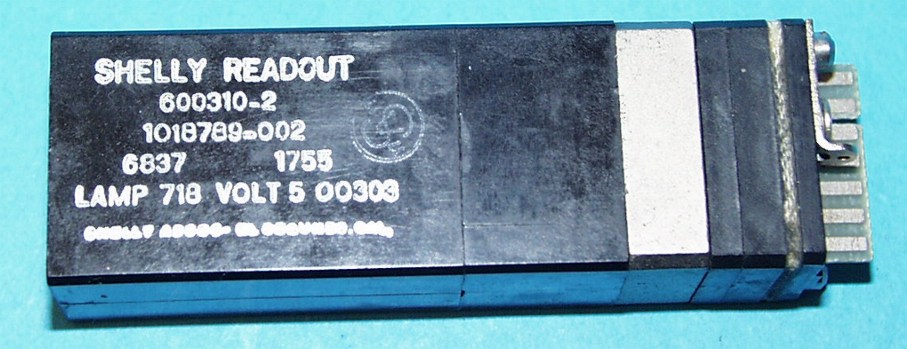

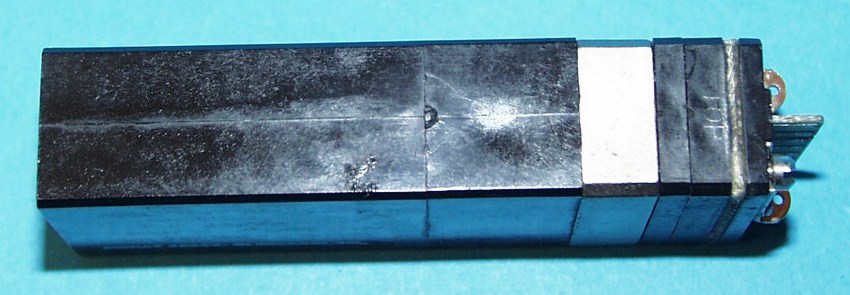

600310-2 (Shelly)
Rear Projection Display

This is a mega- rare display.
Very difficult to find!

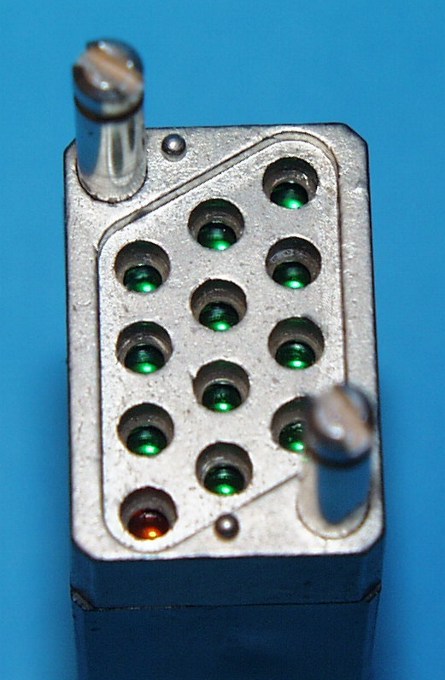

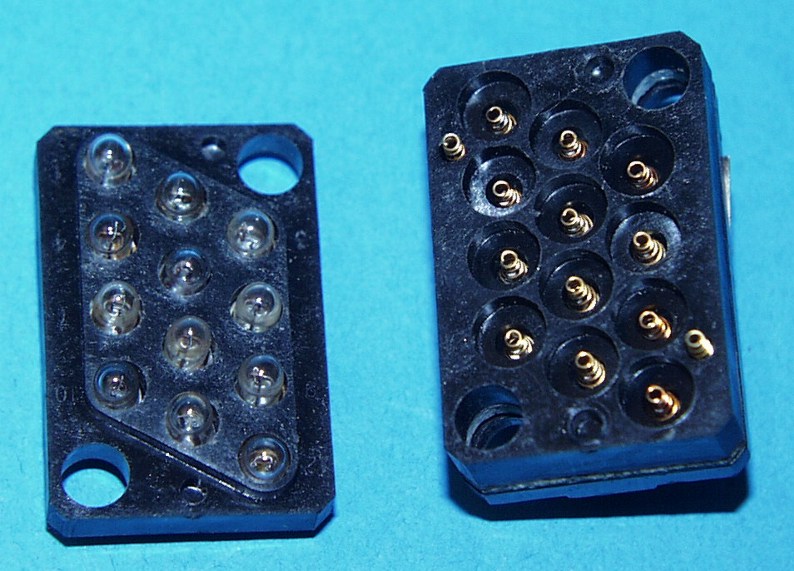

Displaydaten/ Display Data
German English
Typ Type   600310-2
Hersteller Brand   Shelly
Vergleichstypen Substitudes   -

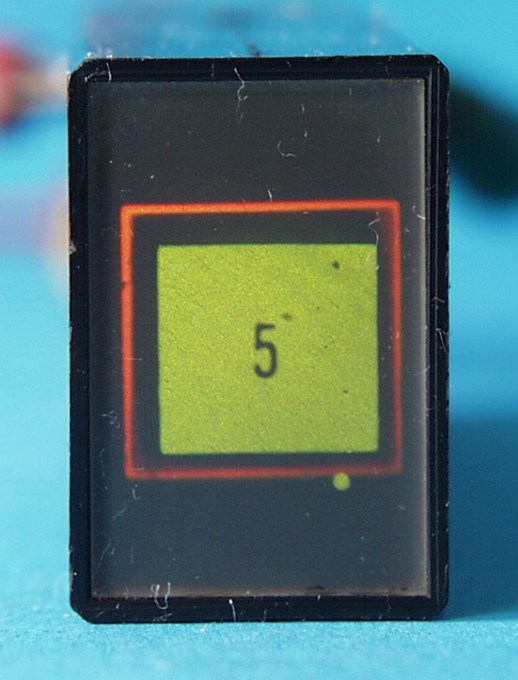

Symbole Displayed symbols   1-11 (green), square frame (red)
Symbolhöhe Symbol height   13.8mm (0.55") (frame); 2.7mm (0.1") (numerals)
Abmessungen Overall dimensions   28.5mm (1.12") X 19mm (0.75") X 89mm (3.5")
Betriebsspannung Operating voltage V 5
Betriebsstrom Operating current mA 0.115
Lampentyp Bulb type   718

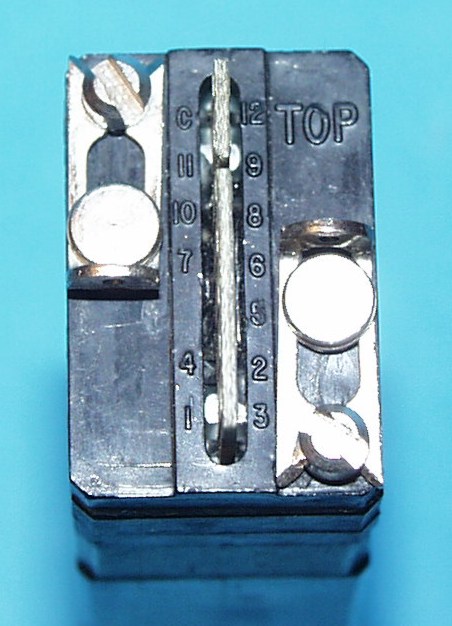

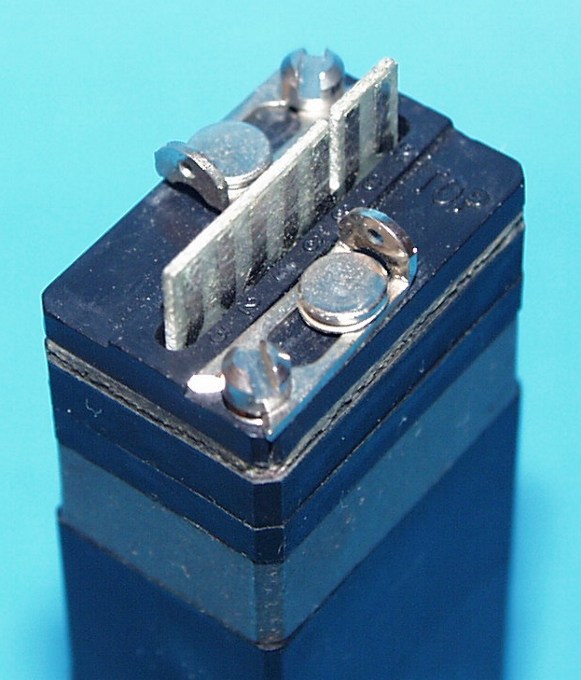

Pinout:

TOP
COM frame
11 9

10 8
7 6
not connected 5
4 2
1 3
