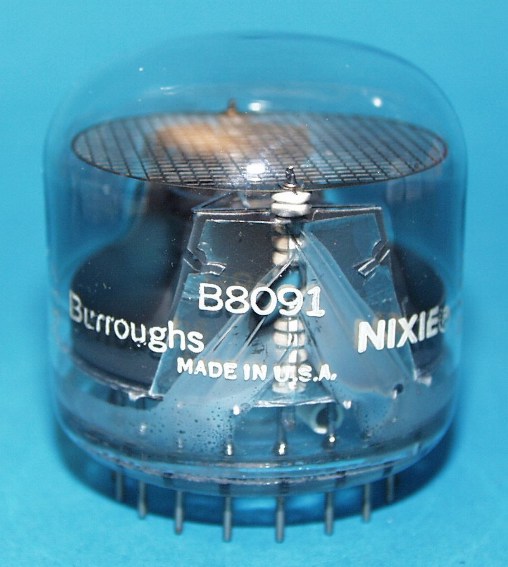

B-8091 (Burroughs)
Nixie Röhre/ Nixie Tube

Eine super- große und sehr seltene Type.
Eine der schönsten Nixie Röhren die ich kenne!

A super- large and super- rare type!
This is one of the most wonderful tubes I know!

Röhrendaten/ Tube Data
German English
Typ Type   B-8091
Hersteller Brand   Burroughs
Vergleichstypen Substitudes   NL-8091, B-8033
Symbole Displayed symbols   0-9
Symbolhöhe Symbol height   35mm (1.375")
Abmessungen Overall dimensions   52.5mm (2.060") dia. X 58mm (2.280") tall
Pindurchmesser Pin diameter   1.02mm (0.040")
min. Betriebsspannung min. supply voltage V 170
typ. Brennspannung typ. maintaining voltage V 145
Betriebs-
Kathodenstrom
typ. cahthode current mA 4.75
Sockel Base   SK-137, Pin 10 oben/ pin 10 at top
Fassung Socket   SK-137 oder Einlötbuchsen 1mm/
SK-137 or pin receptacles 1mm

Pinout:

Outline:

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
