CD14 (Rodan) Nixie Röhre/ Nixie Tube |

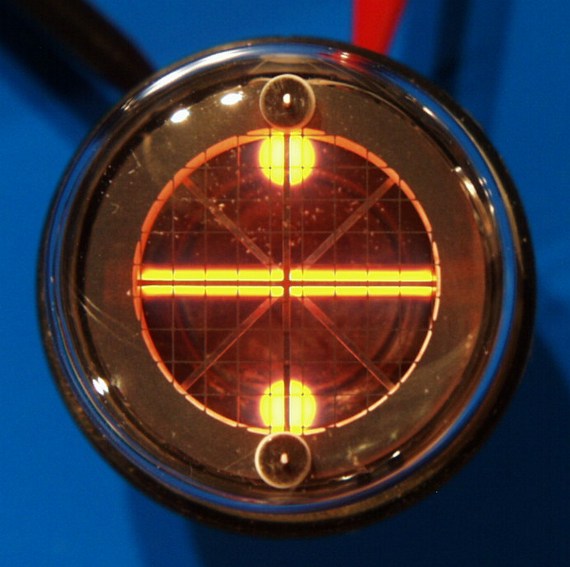

A very rare tube with odd base and socket (see below)
Röhrendaten/ Tube Data | |||
German | English | ||
Typ | Type | CD14 | |
Hersteller | Brand | Rodan | |
Vergleichstypen | Substitudes | - | |
Symbole | Displayed symbols | +, −, ×, ÷ | |
Symbolhöhe | Symbol height | mm | 19 (0.750") |
Durchmesser | Diameter | mm | 30 (1.18") |
Höhe gesamt | Total height | mm | 45.5 (1.79") |
Pindurchmesser | Pin diameter | mm | 1.02 (0.040") |
min. Betriebsspannung | min. supply voltage | V | 170 |
typ. Brennspannung | typ. maintaining voltage | V | 145 |
Betriebs- Kathodenstrom |
typ. cahthode current | mA | 2.5 |
Sockel | Base | TSB-14P, pin 4 vorne/ pin 4 at front | |
Fassung | Socket |
TSB-14P oder Einlötbuchsen 1mm/ TSB-14P or pin receptacles 1mm |
Drawing/ Pinout:
Ansicht von unten / Bottom
View
Pfeil zeigt nach oben/ Arrow points away from tube
outline indicating bottom of symbols
