DR2030 (RCA)
Glühfaden- Röhre/ Numitron Tube

Röhrendaten/ Tube Data
German English
Typ Type   DR2030
Hersteller Brand   RCA
Vergleichstypen Substitudes   -
Symbole Displayed symbols   +, -
Symbolhöhe Symbol height   7.5mm (0.2"), for 15mm (0.400") digits
Abmessungen Overall dimensions   20.5mm (0.810") dia. X 47.7mm (1.875") tall
Pindurchmesser Pin diameter   1.02mm (0.040")
typ. Betriebsspannung typ. supply voltage V 4.5
typ. Strom pro Segment typ. current per segment mA 24
Sockel Base   B9A, Pin 3 vorne/ pin 3 at front
Fassung Socket   B9A (=Noval)

Pinout:

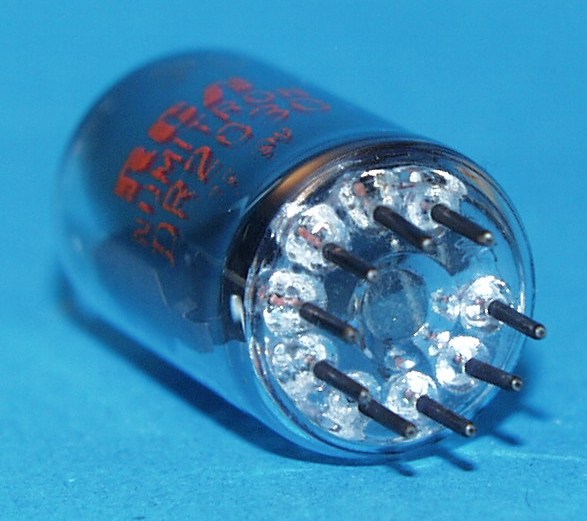

Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung/ Arrow shows direction of viewing

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
