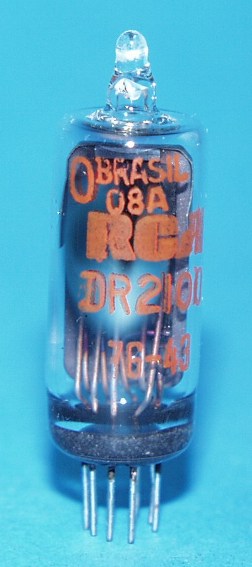

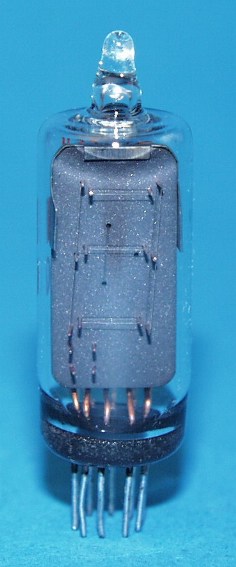

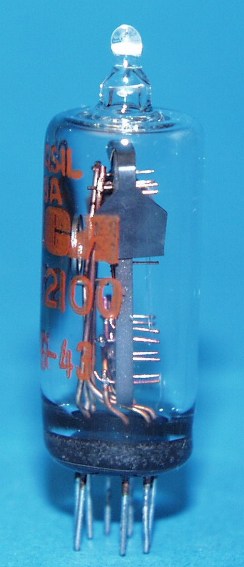

DR2100 (RCA)
Glühfaden- Röhre/ Numitron Tube

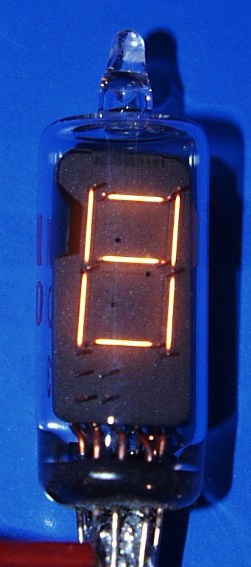

Here you can see a wonderful Numitron clock, where that tube was used
Made by Sal Brisindi
Check out his homepage here:
http://www.tuberadios.com/
http://www.tuberadios.com/numitron2/
http://www.tuberadios.com/numitron/

Röhrendaten/ Tube Data
German English
Typ Type   DR2100
Hersteller Brand   RCA
Vergleichstypen Substitudes   DA-2100, DR2100V1
Symbole Displayed symbols   7 Segment
Symbolhöhe Symbol height   10mm (0.400")
Abmessungen Overall dimensions   13.0mm (0.512") dia. X 43.2mm (1.700") tall
Pindurchmesser Pin diameter   0.5mm (0.020")
typ. Betriebsspannung typ. supply voltage V 4.5
typ. Strom pro Segment typ. current per segment mA 24
Sockel Base   TO-100, pin 3 zeigt nach vorne/
TO-100, pin 3 in front
Fassung Socket   keine Fassung erf./
no socket needed

Pinout:

Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung/ Arrow shows direction of viewing

Outline:

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
