LL-???(unknown) (Dolam)

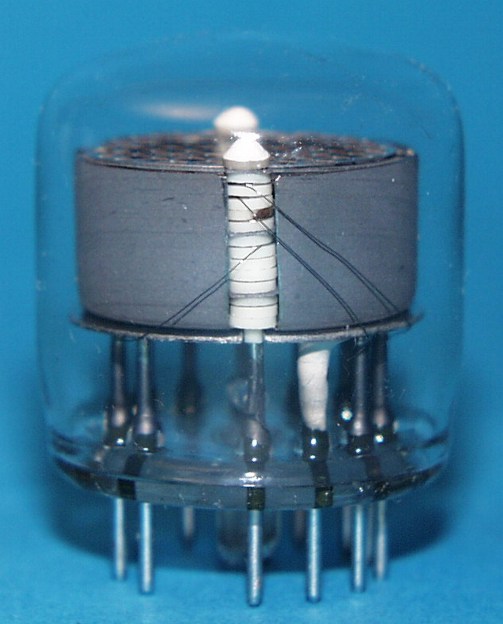

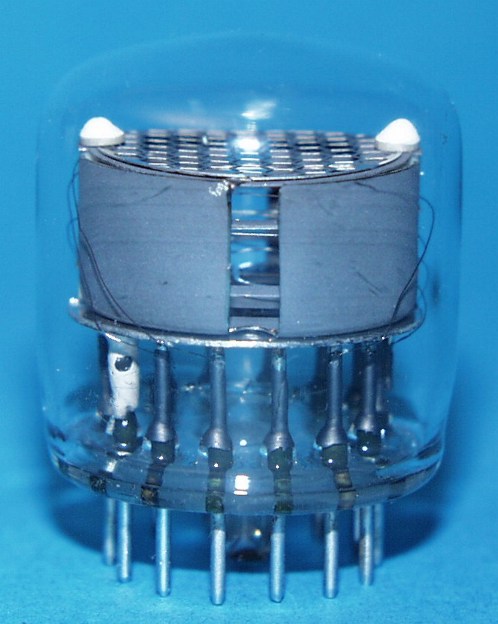

Nixie Röhre/ Nixie Tube

Röhrendaten/ Tube Data
German English
Typ Type   LL-???
Hersteller Brand   Dolam
Vergleichstypen Substitudes   -
Symbole Displayed symbols   D, L, K, W, X, Z, φ
Symbolhöhe Symbol height   13mm (0.51")
Abmessungen Overall dimensions   27.5mm (1.080") dia. X 35mm (1.375") tall
Pindurchmesser Pin diameter   1.02mm (0.040")
min. Betriebsspannung min. supply voltage V 170
typ. Brennspannung typ. maintaining voltage V 140
Betriebs-
Kathodenstrom
typ. cahthode current mA 2.25
Sockel Base   B13B, Pin 8 oben/ pin 8 at top
Fassung Socket   B13B oder Einlötbuchsen 1mm/
B13B or pin receptacles 1mm

Pinout:


Pin Anschluss/
Connection
1 internal connection
2 Anode
3 Cathode (L)
4 Cathode (X)
5 internal connection
6 Cathode (Z)
7 Cathode (φ)
8 internal connection
9 Cathode (K)
10 Cathode (W)
11 internal connection
12 Cathode (D)
13 internal connection

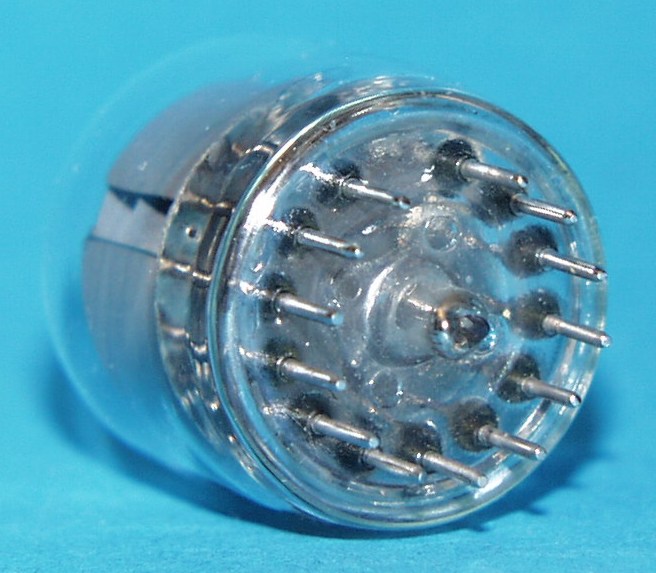

Ansicht von unten / Bottom view
feil zeigt nach oben/ Arrow points up.
