NL-4038 (National
Electronics) |

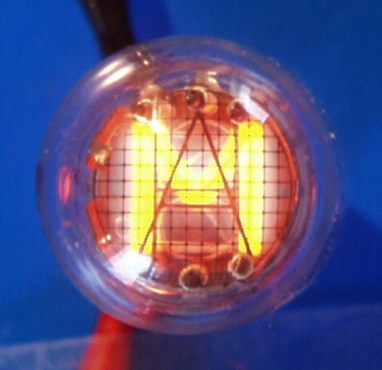

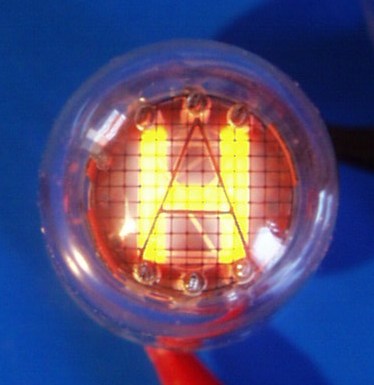

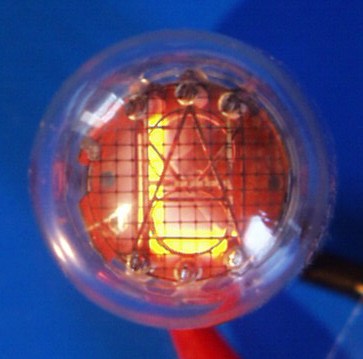

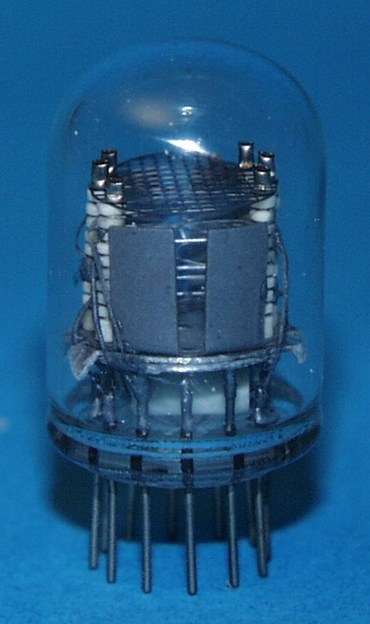

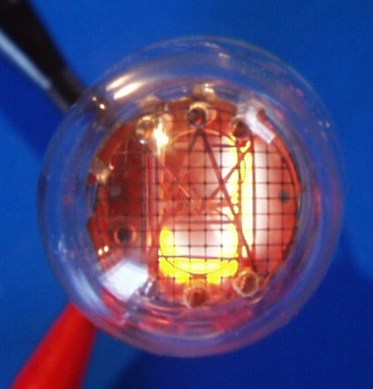

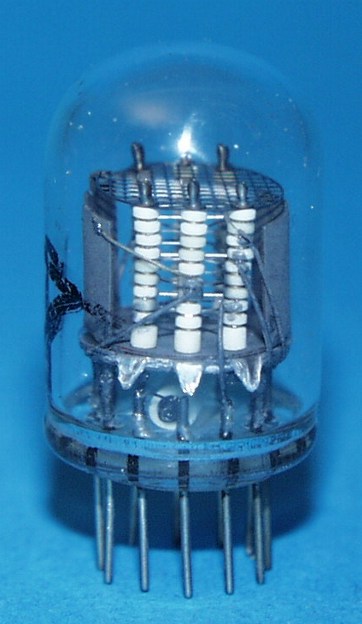

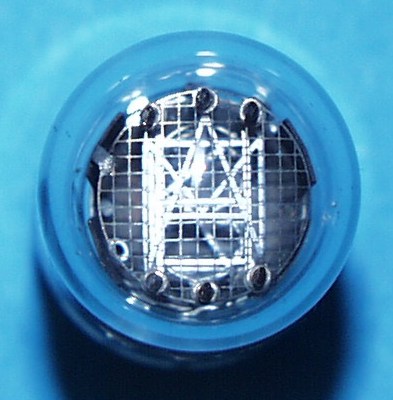

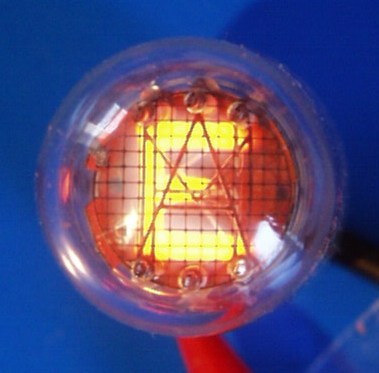

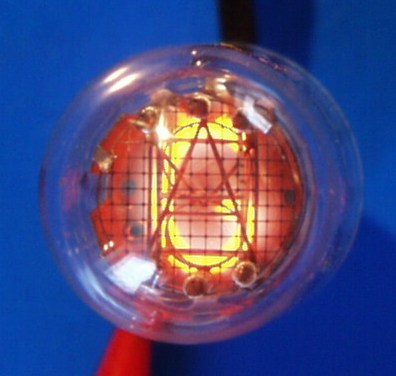

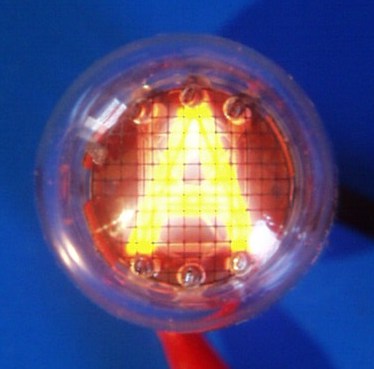

This is a very tiny and rare Nixie tube!
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | NL-4038 | |
| Hersteller | Brand | National Electronics | |
| Vergleichstypen | Substitudes | 4038, B-4038 | |
| Symbole | Displayed symbols | A, E, G, H, J, K, L, M | |
| Symbolhöhe | Symbol height | 7.75mm (0.305") | |
| Abmessungen | Overall dimensions | 17mm (0.680") dia. X 27mm (1.063") tall | |
| Pindurchmesser | Pin diameter | 0.45mm (0.018") | |
| min. Betriebsspannung | min. supply voltage | V | 170 |
| typ. Brennspannung | typ. maintaining voltage | V | 145 |
|
Betriebs- Kathodenstrom |
typ. cahthode current | mA | 1 |
| Sockel | Base |
SK-116, Pin 7 oben/ SK-116, pin 7 on top |
|
| Fassung | Socket |
SK-116 oder Einlötbuchsen 0.45mm/ SK-116 or pin receptacles 0.45mm |
|
Pinout:
| Pin |
Anschluss/ Connection |
| 1 | internal connection |
| 2 | Cathode (L) |
| 3 | Cathode (E) |
| 4 | Cathode (A) |
| 5 | not connected |
| 6 | Cathode (H) |
| 7 | Cathode (G) |
| 8 | Cathode (K) |
| 9 | Cathode (M) |
| 10 | Cathode (J) |
| 11 | Anode |
(Pinout graphic by Alan Franzman)
Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung / Arrow shows
direction of viewing!
Outline:
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
