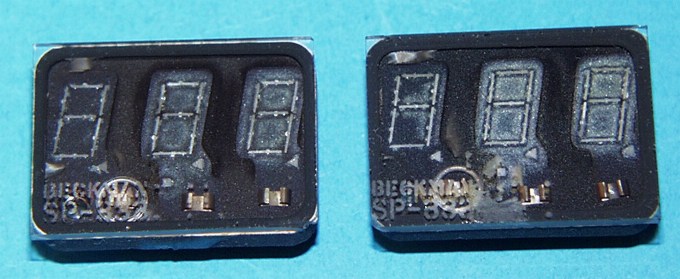

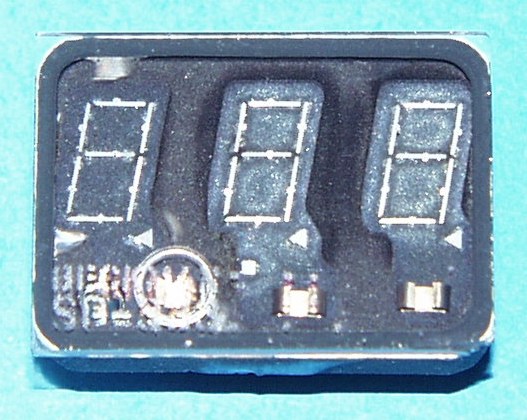

SP-333 (Beckman) Panaplex Display |
Planar neon gas discharge 'Panaplex' readout.
Separate anodes allow single-digit multiplexing.
Same as SP-733, but with keep alive cathode.
Used in Tektronix Model 21 and 31 and Commodore US*14 calculators.
The sockets (Sperry/Chinch 9-0010):
Röhrendaten/ Tube Data | |||
German | English | ||
Typ | Type | SP-333 | |
Hersteller | Brand | Beckman | |
Vergleichstypen | Substitudes | HB-333, (SP-733) | |
Symbole | Displayed Symbols | 3-Digit, 7 segment, 3 x PR | |
Symbolhöhe | Symbol Height | 7.75mm (0.305") | |

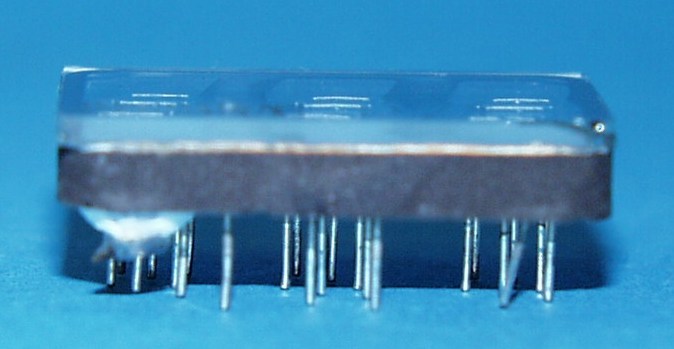

Abmessungen | Dimensions | 28.58mm (1.125") X 21mm (0.815") X 11.5mm (0.455") thick | |
Pindurchmesser | Pin Diameter | mm | 0.48 (0.019") |
min. Betriebsspannung | min. Supply Voltage | V | 160 |
typ. Brennspannung | typ. maintaining Voltage | V | 135 |
Betriebs- Kathodenstrom |
Typical Cahthode Current |
mA |
Siehe Datenblatt für die verschiedenen Segmente!/ See data sheet for different segments! |

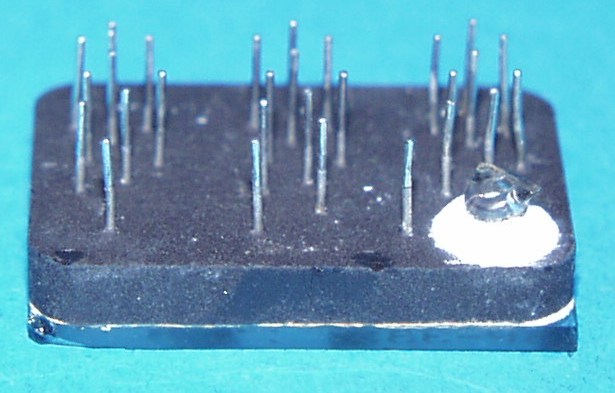

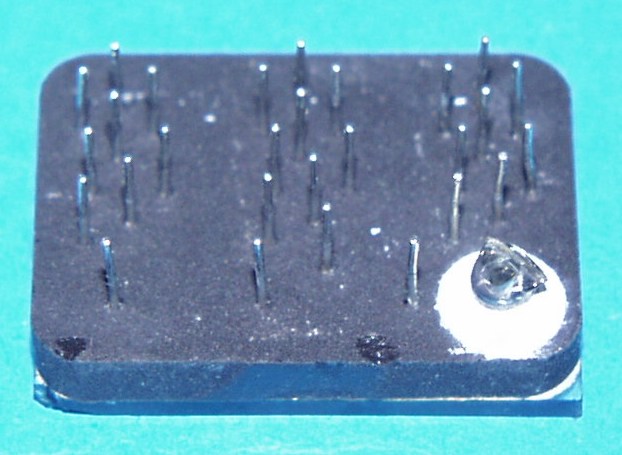

Sockel | Base | 28 Pins, special arrangement | |
Fassung | Socket | 9-0010 |
Features
DC Characteristics:
|
SP-330 Family |
SP-350 Family |
||||
|
MIN |
TYP |
MAX |
MIN |
TYP |
MAX |
Display Supply Voltage1 |
160 Vdc |
180 Vdc |
Note 2 |
160 Vdc |
180 Vdc |
Note 2 |
Anode-to-Anode
Differential |
--- |
--- |
14 Vdc |
--- |
--- |
14 Vdc |
Anode-to-Cathode
Voltage |
--- |
135 Vdc |
--- |
--- |
135 Vdc |
--- |
Cathode Current -
Typical |
70 µA |
180 µA |
250 µA |
130 µA |
330 µA |
420 µA |
Cathode Current -
Decimal |
60 µA |
135 µA |
190 µA |
65 µA |
135 µA |
190 µA |
Cathode Current- Plus Sign4 |
110 µA |
290 µA |
400 µA |
260 µA |
585 µA |
820 µA |
Cathode Current-Minus Sign4 |
50 µA |
135 µA |
185 µA |
120 µA |
270 µA |
380 µA |
Cathode Current Keep-Alive |
10 µA |
50 µA |
--- |
10 µA |
50 µA |
--- |
Power Dissipation
(with all segments lighted & |
--- |
175 mW |
--- |
--- |
325 mW |
--- |
Operating Temperature |
0°C |
--- |
70°C |
0°C |
--- |
70°C |
Storage Temperature |
-55°C |
--- |
125°C |
-55°C |
--- |
125°C |
Multiplex Characteristics:
SP-330 Family |
SP-350 Family |
|||||
|
MIN |
TYP |
MAX |
MIN |
TYP |
MAX |
Display Supply Voltage |
160 Vdc |
180 Vdc |
Note 2 |
160 Vdc |
180 Vdc |
Note 2 |
Anode Voltage Swing |
30 Vdc |
45 Vdc |
90 Vdc |
30 Vdc |
45 Vdc |
90 Vdc |
Anode On Time6 7 11 |
80 µsec |
200 µsec |
---- |
80 µsec |
200 µsec |
---- |
Interdigit
Blanking Time12 13 |
40 µsec |
55 µsec |
---- |
40 µsec |
55µsec |
---- |
Refresh Period |
---- |
---- |
Note 6 |
---- |
---- |
Note 6 |
Cathode Voltage Swing8 9 |
30 Vdc |
50 Vdc |
120 Vdc |
30 Vdc |
50 Vdc |
120 Vdc |
Cathode Bias
Voltage (ON |
90 Vdc |
110 Vdc |
120 Vdc |
90 Vdc |
110 Vdc |
120 Vdc |
Notes:
Outline:
Pinout:
Ansicht von vorne / View from front
