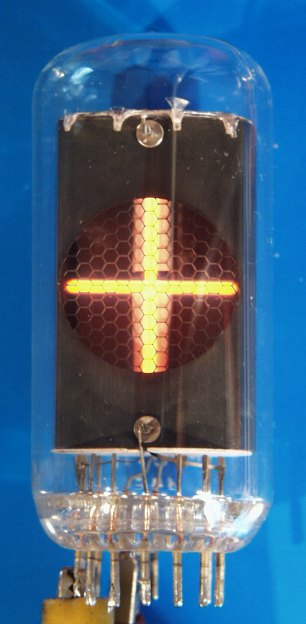

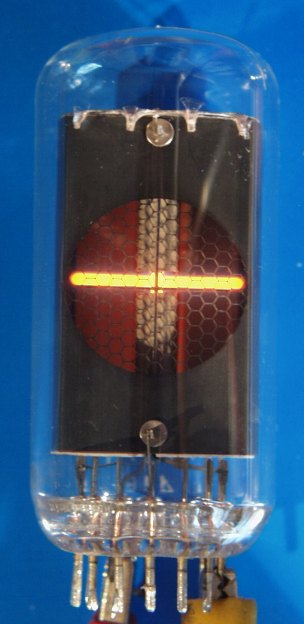

ZM1043/01
(Valvo)
Nixie Röhre/Nixie Tube
This on had tinned pins from factory!
| Röhrendaten/Tube Data | |||
| German | English | ||
| Typ | Type | ZM1043/01 | |
| Hersteller | Brand | Valvo | |
| Vergleichstypen | Substitutes | ZM1041, ZM1043, Z567M, Z5670M | |
| Symbole | Displayed symbols | +, – | |
| Symbolhöhe | Symbol height | 18mm (0,7"), nominal 30mm (1.18") | |
| Abmessungen | Overall dimensions | 29mm (1.14") dia. X 68mm (2.68") tall | |
| Pindurchmesser | Pin diameter | 1.02mm (0.040") | |
| min. Betriebsspannung | min. supply voltage | V | 170 |
| typ. Brennspannung | typ. maintaining voltage | V | 140 |
| Betriebs-Kathodenstrom | Typical cathode current | mA | 4.5 |
| Sockel | Base |
B13B, Pin 8 vorne/ B13B, pin 8 at front |
|
| Fassung | Socket | B13B | |
Outline/Pinout:
Ansicht von unten/Bottom view
Pfeil zeigt Blickrichtung/Arrow shows
direction of viewing!
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
