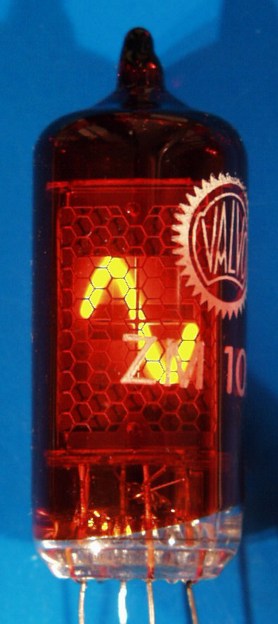

ZM1081 (Valvo) |

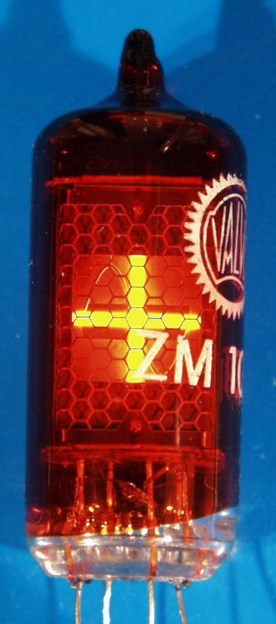

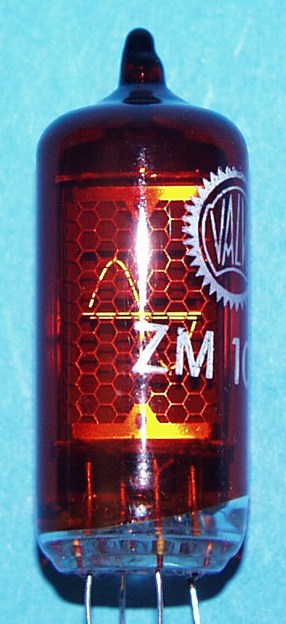

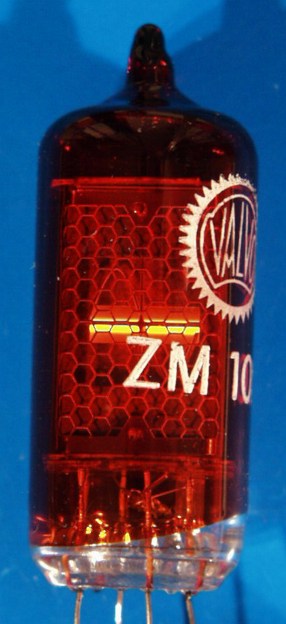

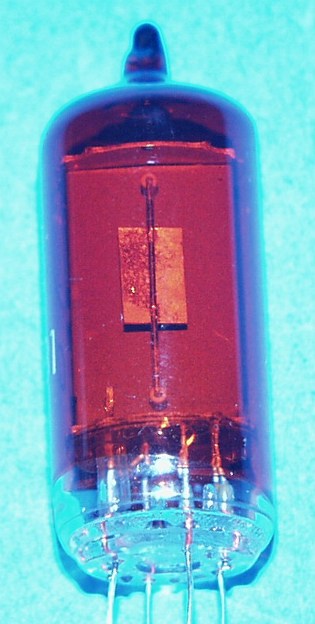

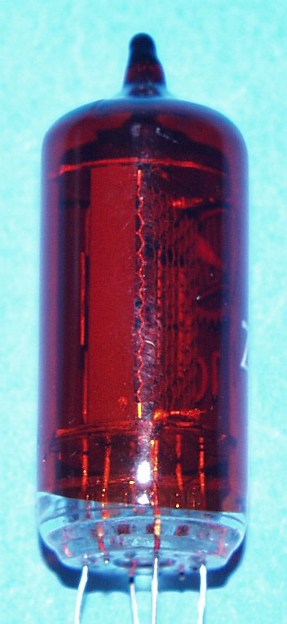

Röhrendaten/ Tube Data | |||
German | English | ||
Typ | Type | ZM1081 | |
Hersteller | Brand | Valvo | |
Vergleichstypen | Substitudes | ZM1083, GS6, GS6A ? | |
Symbole | Displayed symbols | +, -, ~ | |
Symbolhöhe | Symbol height | 10.5mm (0.413") für/ for 13mm (0.51") | |
Abmessungen | Overall dimensions | 19mm dia. (0.75") X 47.5mm (1.87") tall | |
Pindurchmesser | Pin diameter | 0.45mm (0.018") | |
min. Betriebsspannung | min. supply voltage | V | 170 |
typ. Brennspannung | typ. maintaining voltage | V | 140 |
Betriebs- Kathodenstrom |

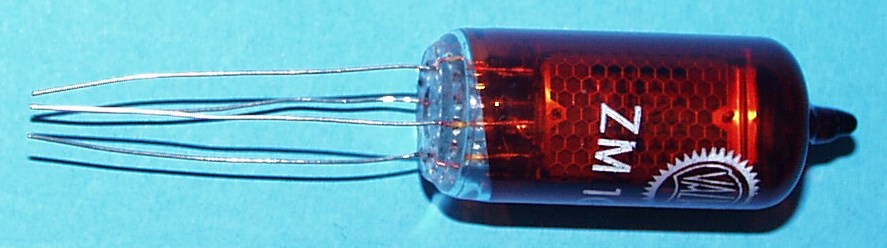

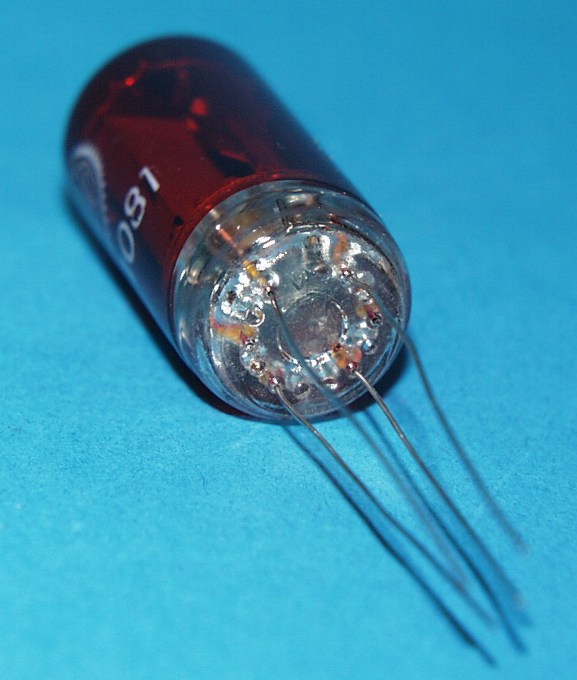

typ. cahthode current | mA | 2 |
Sockel | Base |
B7D, Draht 2, 4, 6 fehlt B7D, wires 2, 4, 6 omitted |
|
Fassung | Socket |
Drahtanschluss, keine Fassung erf./ Wire connection, no socket needed |

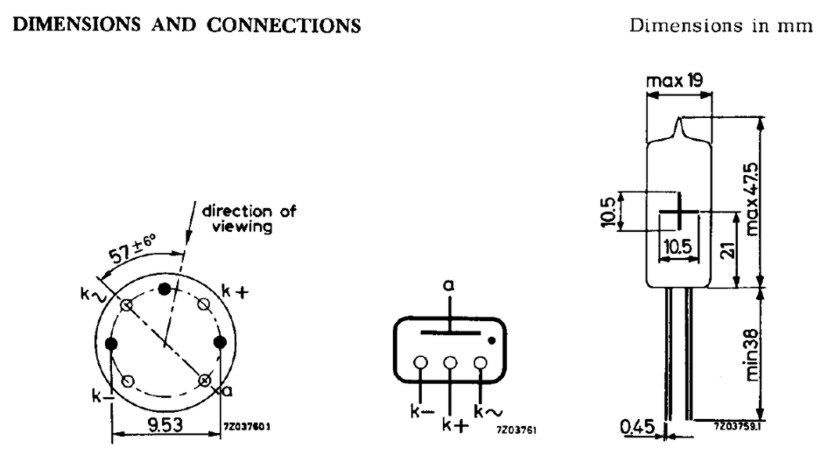

Pinout/ Outline:
Ansicht von unten / Bottom
view
Pfeil zeigt Blickrichtung! / Arrow shows
direction of viewing!
