B14A (Cinch)
Nixie Fassung/ Socket

This is the largest Nixie tube socket.

B14A Sockel- Beispiel/

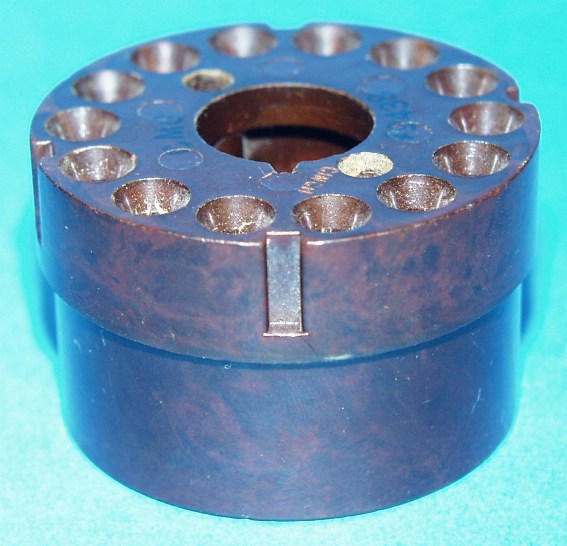

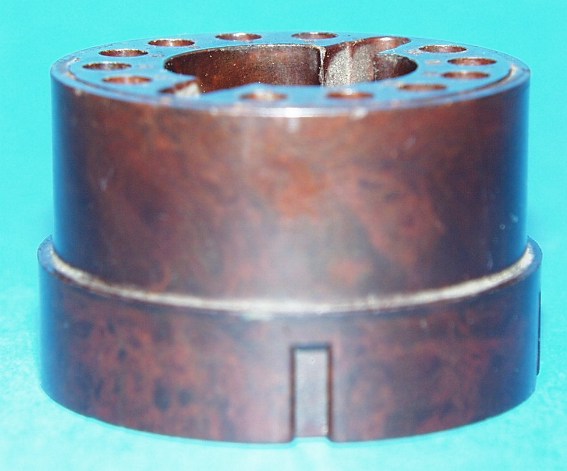

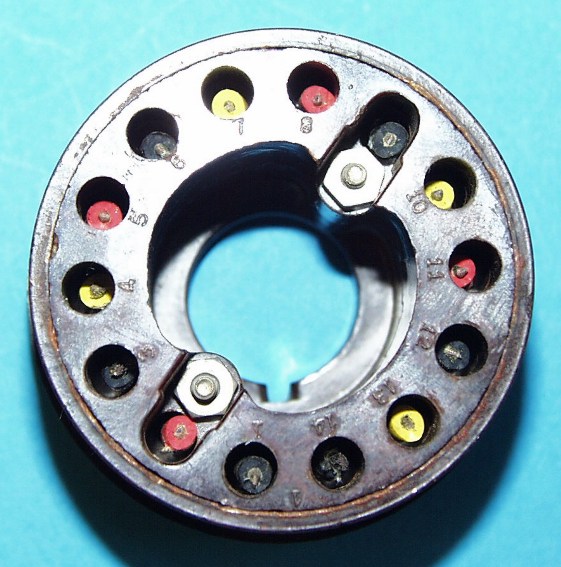

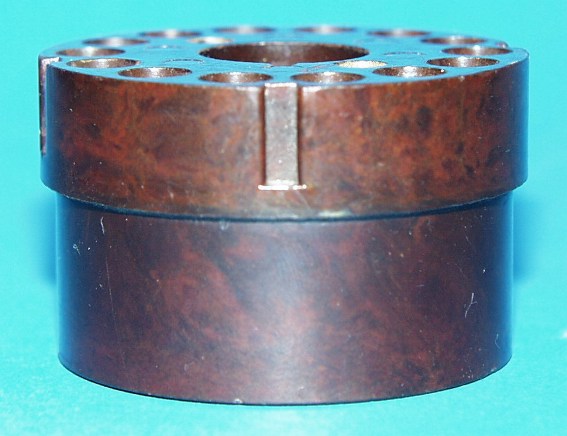

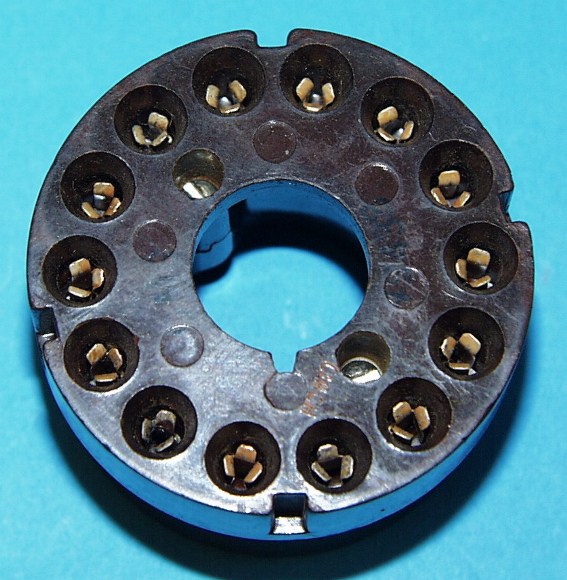

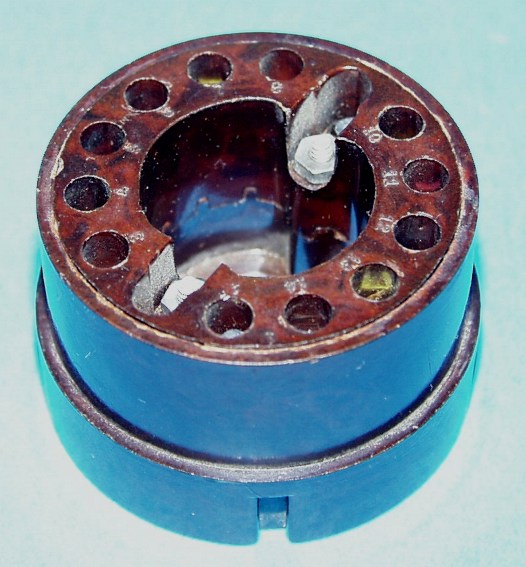

B14A Base example:

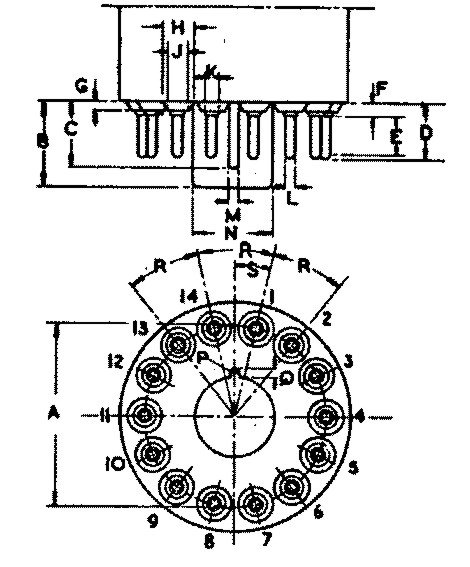

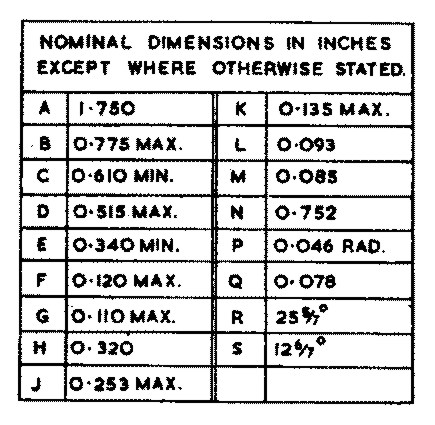

Pinout/ Outline:

Ansicht von unten / Bottom view

Physical Characteristics:

German English
Anzahl der Pins Number of Pins 14
Hersteller Brand Cinch
Typ Type B14A
für Sockel for base B14A
Pinkreis- Durchmesser Pin Circle Diameter 44.5mm (1.750")
Pin- Durchmesser Pin Diameter 2.36mm (0.093")
Pin- Abstand Pin Spacing 25.7°
Vergleichstypen Substitudes Diheptal, B14-38, B14-45, SK-117

This tube sockets fit for the following Nixie and readout tubes (examples!):

7031; 7032; B-7011; B-7031; B-7032; BD-307; DZ10
and some others!
