B9A

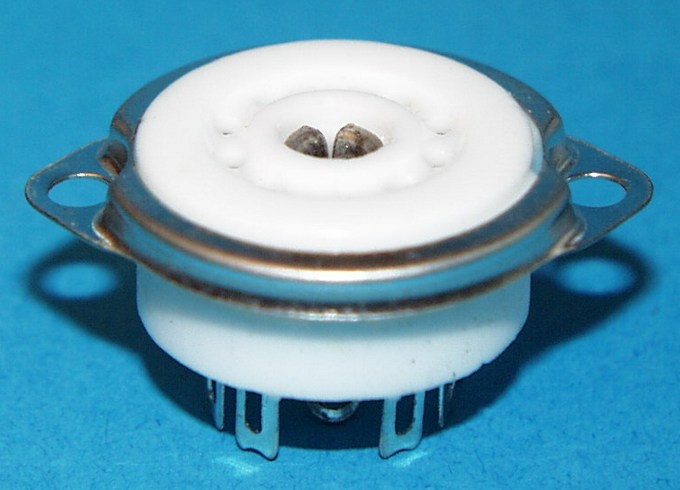

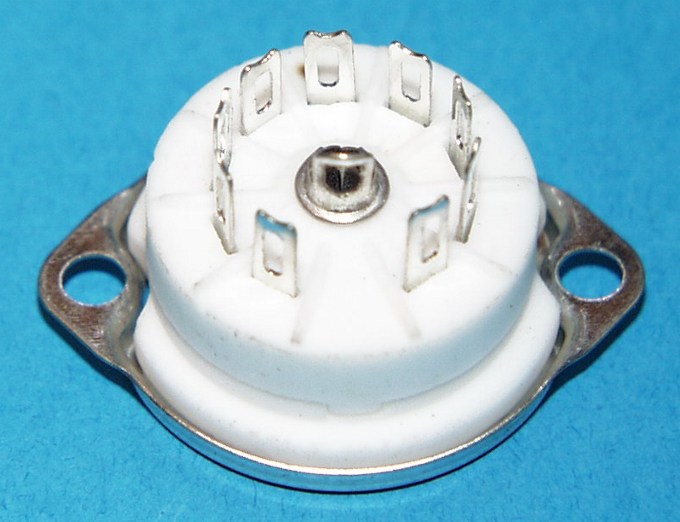

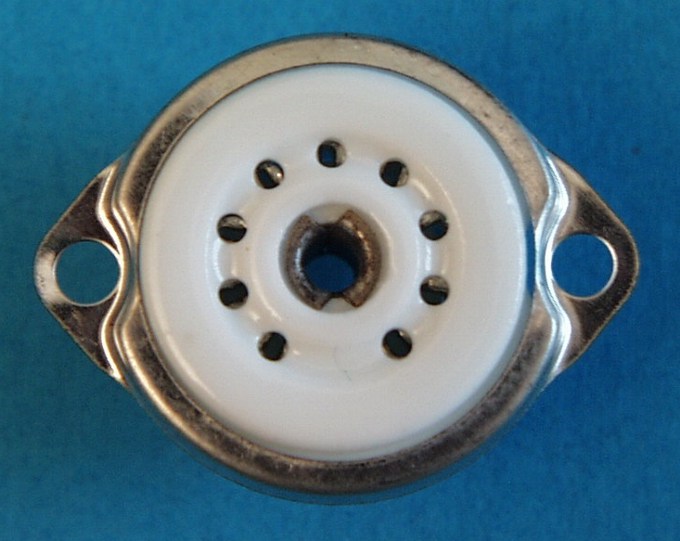

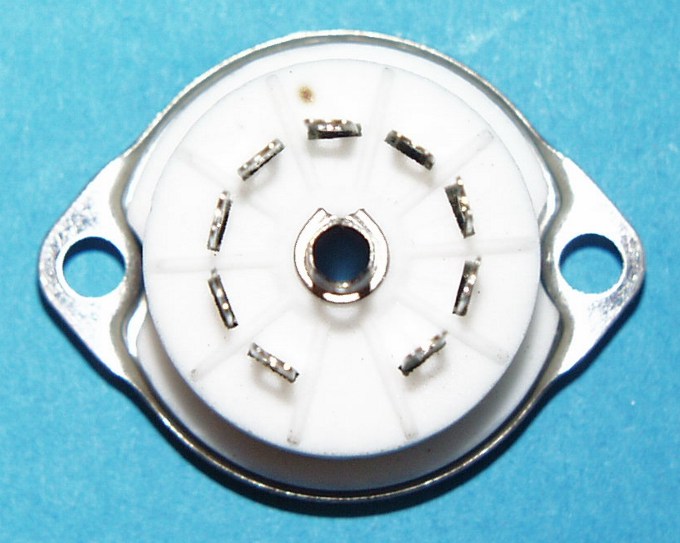

Fassung/ Socket

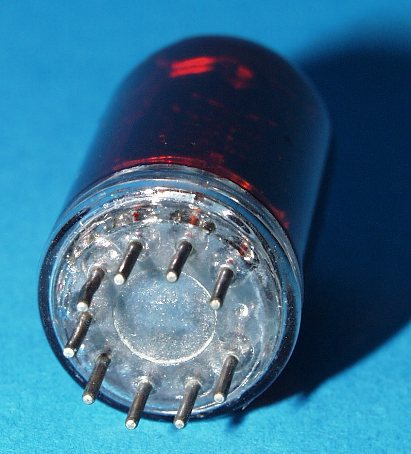

B9A Sockel- Beispiel/
B9A Base example:

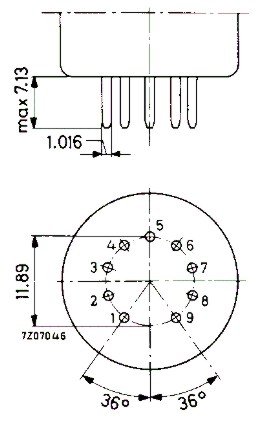

Pinout:

Ansicht von unten / Bottom view

Physical Characteristics:

German English
Anzahl der Pins Number of Pins 9
Typ Type B9A
für Sockel for base B9A
Pinkreis- Durchmesser Pin Circle Diameter 11.9mm (0.469")
Pin- Durchmesser Pin Diameter 1.02mm (0.040")
Pin- Abstand Pin Spacing 36°
Vergleichstypen Substitudes Noval, 9 Pin Miniature, Pico 9, E9-1, E9-68

This tube sockets fit for the following Nixie and readout tubes (examples!):

8894; B-5025; B-5030; DA2000; DA2010; DA2020; DR2000; DR2010; DR2020; DR2022; DR2030; NL-1032; NL-1032N; NL-5025; NL-5030; Z8700M; Z870M; ZM1030; ZM1031; ZM1031/01; ZM1032; ZM1033; ZM1033/01; ZM11; ZM1137; ZM1139; ZM13; ZM13U; ZM14
and some others!
