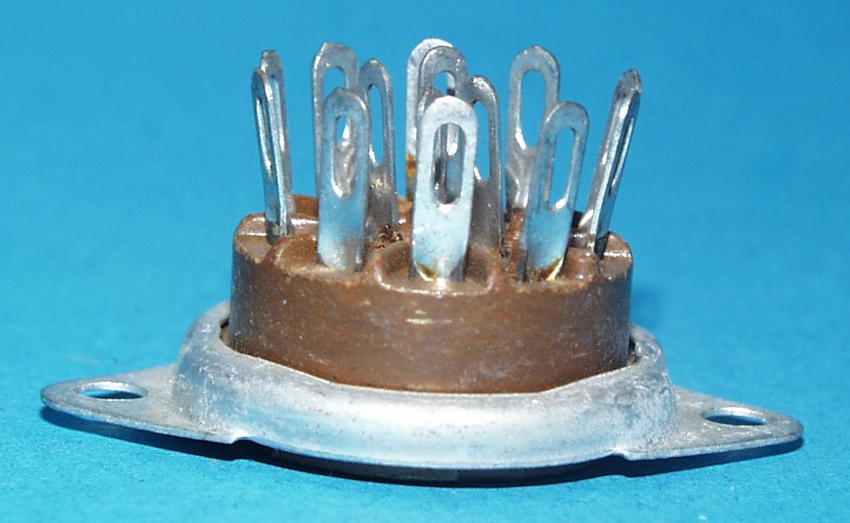

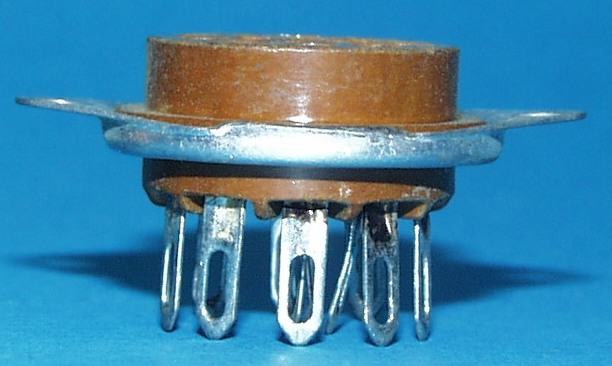

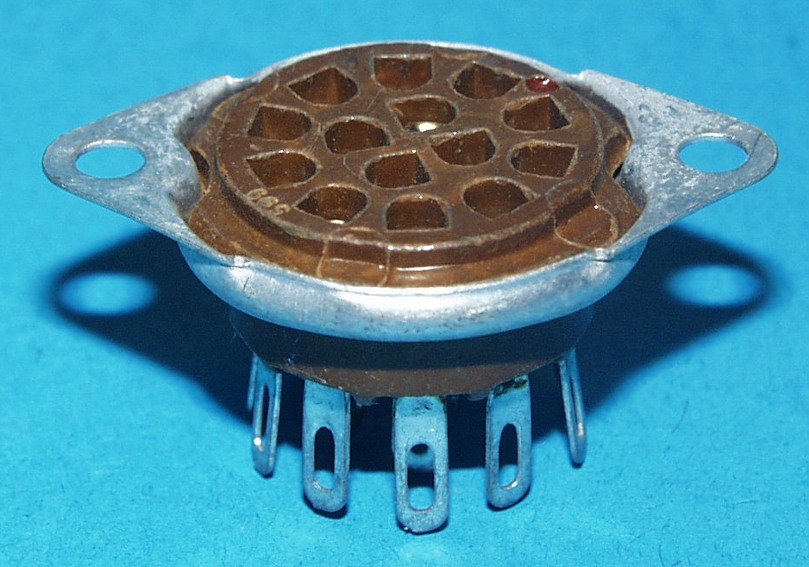

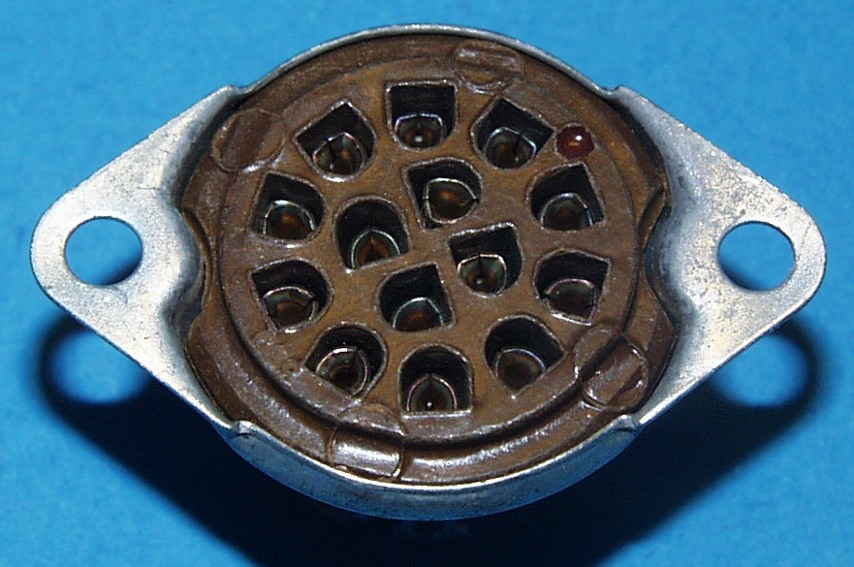

RTS-11 (14pin chassis
mount) |
RTS-11 Sockel- Beispiel/
RTS-11 Base example:
Pinout:
Pinout graphic by Alan Franzman
Ansicht von unten / Bottom view
Outline:
Physical Characteristics:
| German | English | |
| Anzahl der Pins | Number of Pins | 14 socket. 12, 13 or 14 tube |
| Hersteller | Brand | unknown |
| Typ | Type | RTS-11 |
| für Sockel | for base | RTS-11 |
| Äußerer Pinkreis- Durchmesser | Outer Pin Circle Diameter | 12.7mm (0.500") |
| Innerer Pinkreis- Durchmesser | Inner Pin Circle Diameter | 5.4mm (0.212") |
| Pin- Durchmesser | Pin Diameter | 1.02mm (0.040") |
| Äußerer Pin- Abstand | Pin Spacing (Outer Circle) | 10 × 36° |
| Innerer Pin- Abstand | Pin Spacing (Inner Circle) | 4 × 90° |
| Vergleichstypen | Substitudes | RTS-14, RTS-18, RTS-47, RTS-48, RTS-49, RTS-50 |
This tube sockets fit for the following Nixie and readout tubes (examples!):
340-0004; 340-0005; 4200840; 4200841; 7193; 8754;
CK1905; CK1907; CK1916; CK1917; CK1918; CK1922; CK8754; NL-803; NL-807; NL-811;
NL-812; NL-814; NL-821; NL-840; NL-841; NL-842; NL-842PT; NL-843; NL-844;
NL-845; NL-846; NL-847; NL-848; NL-856; NL-864; NL-867; NL-874; NL-875; NL-876;
NL-884; NL-900; NL-901; NL-902; NL-903; NL-904; NL-905; NL-906; NL-907; NL-908;
NL-939; NL-943; NL-973.
and many others!
