SK-116 (Cinch)
Nixie Fassung/ Socket

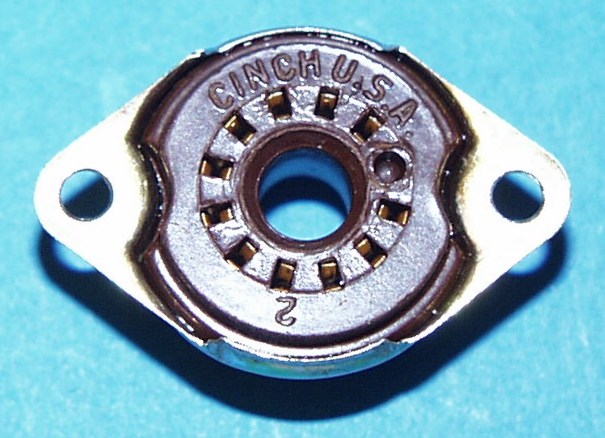

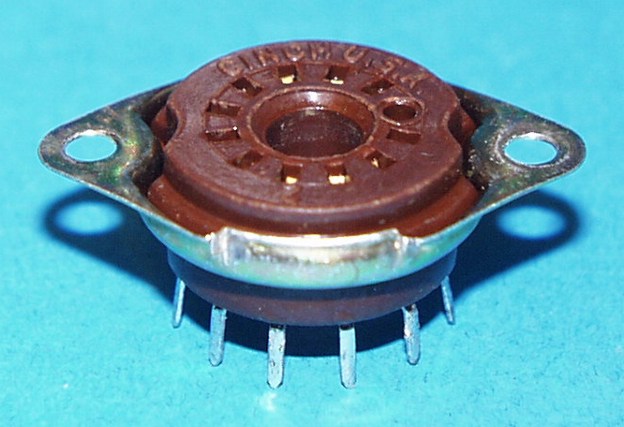

SK-116 Sockel- Beispiel/
SK-116 Base example:

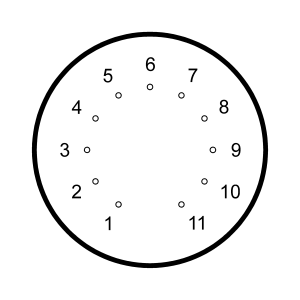

Pinout:

Pinout graphic by Alan Franzman

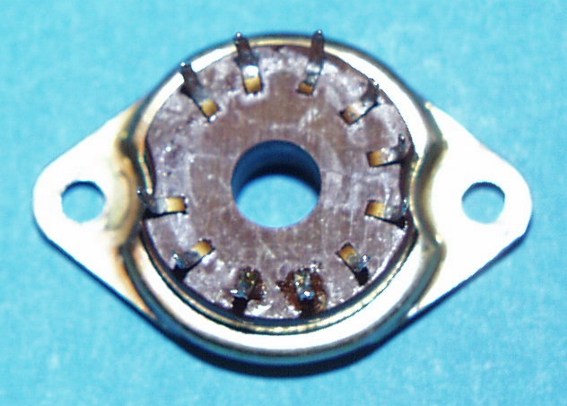

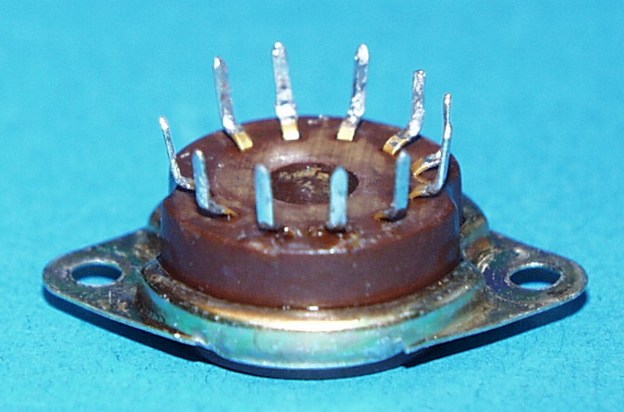

Ansicht von unten / Bottom view

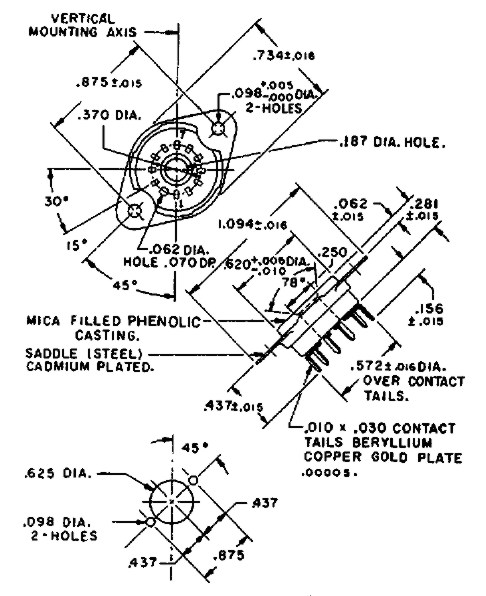

Outline:

Physical Characteristics:

German English
Anzahl der Pins Number of Pins 11
Hersteller Brand Cinch
Typ Type SK-116(A)
für Sockel for base SK-116
Pinkreis- Durchmesser Pin Circle Diameter 9.4mm (0.370")
Pin- Durchmesser Pin Diameter 0.45mm (0.018")
Pin- Abstand Pin Spacing 30°

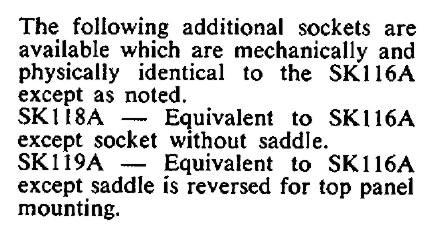

Andere Namen für diesen Sockel Aliases RTS-3, SK-116A, SK-118A, SK-119A, TSM-11P

This tube sockets fit for the following Nixie and readout tubes (examples!):

1970-0025; 4021; 4031; 4032; 4038; 4041; 5810; 7009; 7977; 8502; B-4021; B-4021AL; B-4021G; B-4021L; B-4022; B-4024; B-4028; B-4031; B-4032; B-4038; B-4041; B-4081; B-4088; B-5560; B-7009; BD-200; BD-200S; BD-244; CD101; CD13; CD13A; CD19; GN-6; GN-6A; JAN-7009; JAN-7977; JAN-8502; NL-4021; NL-4021A; NL-4021AL; NL-4031; NL-4032; NL-4038; NL-4041; NL-7009; NL-7977; NL-8502; NL-918; XN1; XN3; XN3F; XN6; ZM1120; ZM1122.
and many others!
