B12A
Fassung/ Socket

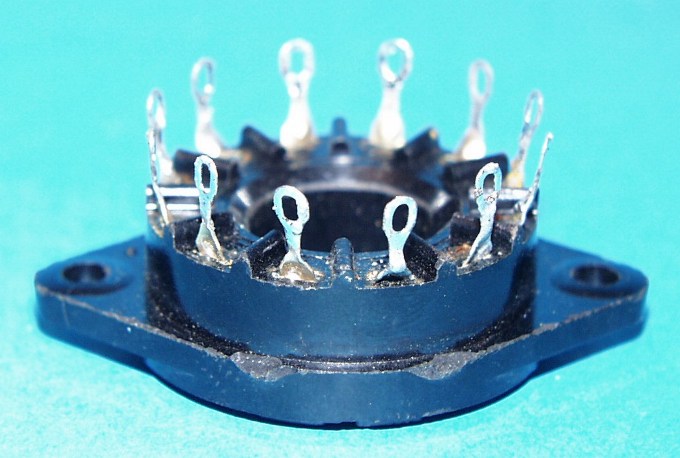

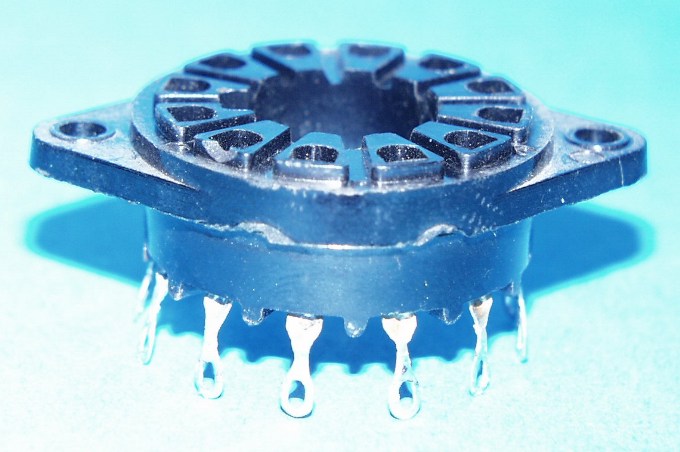

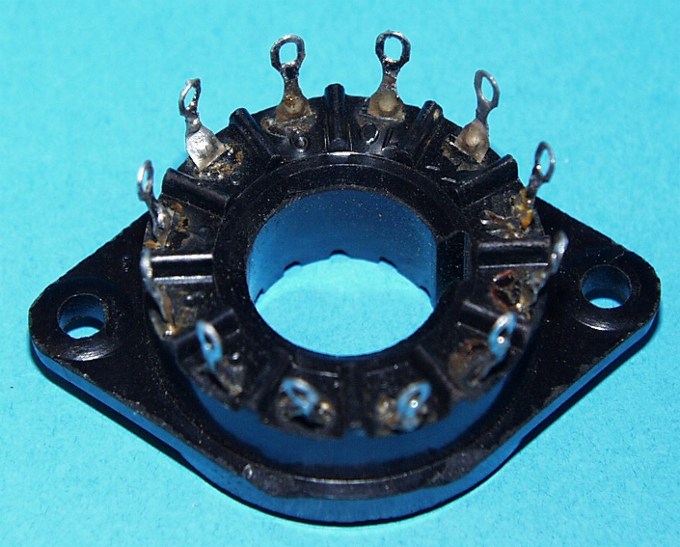

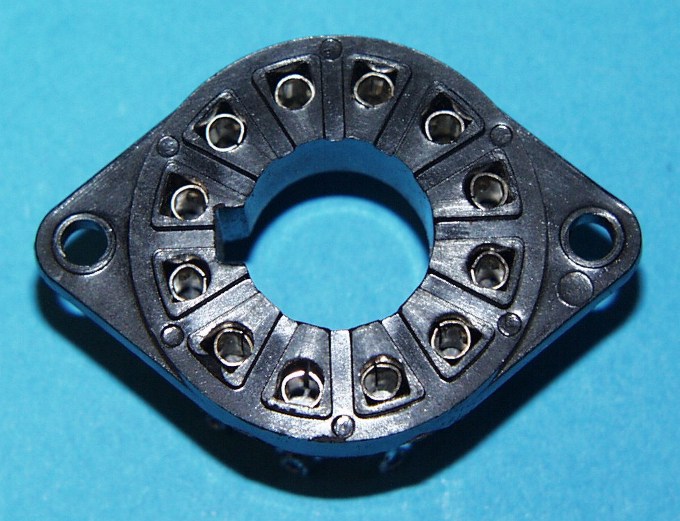

B12A Sockel- Beispiel/
B12A Base example:

Outline:

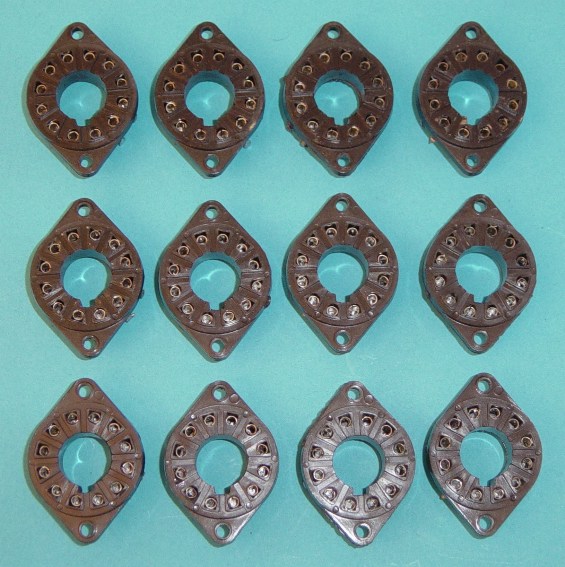

This picture shows another socket!

Pinout:

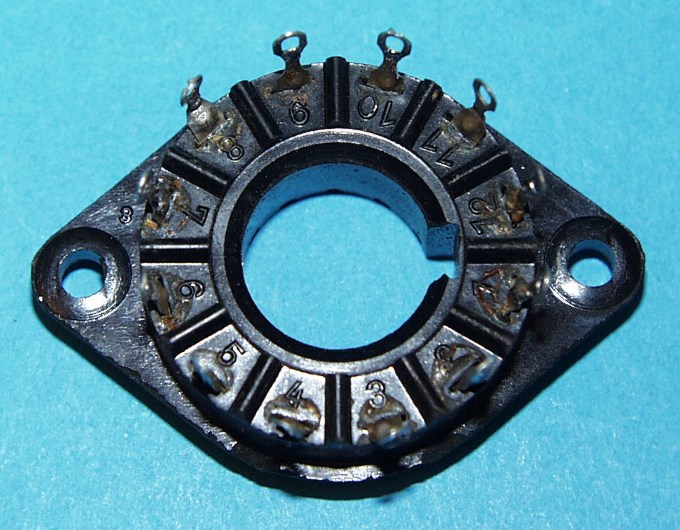

Ansicht von unten / Bottom view

Physical Characteristics:

German English
für Sockel for base B12A
Anzahl der Pins Number of Pins 12
Hersteller Brand unknown
Typ Type B12A
Pinkreis- Durchmesser Pin Circle Diameter 27mm (1.063")
Pin- Durchmesser Pin Diameter 2.36mm (0.093")
Pin- Abstand Pin Spacing 30°
Andere Namen für diesen Sockel Aliases Duodecal, B12-43, VH33/1201, VH33/1202, B12A, TSB-12P

This tube sockets fit for the following Nixie and readout tubes (examples!):
6370; CD12; CD27; CD47; CD95; CV5106; E1T; G10/200E; GC10A; GR-311; N4; S10S1; GR-401; CV5351; GN-2; GN-5; GN-5A; GN-1; A-17;  GR-411; GR-414; GR-1620.
and many others!
