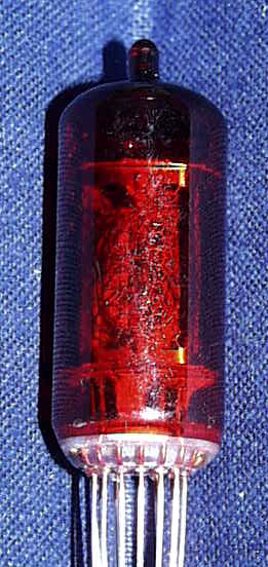

Z573M (RFT)
Nixie Röhre/ Nixie Tube





Nixie Clock-example 1:


Nixie Clock-example 2:



Röhrendaten / Tube Data
German English
Typ Type   Z573M
Hersteller Brand   RFT
Vergleichstypen Substitudes   B570M, F9080B, F9080BA, TAF1093A, TAF1317A, TAU7030, Z5700M, Z570M, Z5730M, Z5740M, Z574M, ZM1080, ZM1082, ZM1134, ZM1135, ZM1136A, ZM1136L, ZM1136R, ZM1138A, ZM1138L, ZM1138R
Symbole Displayed symbols   0-9, PR
Symbolhöhe Symbol height   13mm (0.51")
Abmessungen Overall dimensions   19mm dia. (0.75") X 47.5mm (1.87") tall
Pindurchmesser Pin diameter   0.45mm (0.018")
min. Betriebsspannung min. supply voltage V 170
typ. Brennspannung typ. maintaining voltage V 140
Betriebs-
Kathodenstrom
typ. cahthode current mA 2
Sockel Base   B13D, Pin 7 vorne/
B13D, pin 7 at front
Fassung Socket   Drahtanschluss, keine Fassung erf./
Wire connection, no socket needed

Pinout:


Pin Anschluss/
Connection
1 Cathode (1)
2 Cathode (2)
3 Cathode (3)
4 internal connection
5 Cathode (4)
6 Cathode (5)
7 Cathode (6)
8 Cathode (7)
9 Cathode (8)
10 Cathode (PR)
11 Cathode (9)
12 Cathode (0)
13 Anode

Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung / Arrow shows direction of viewing!

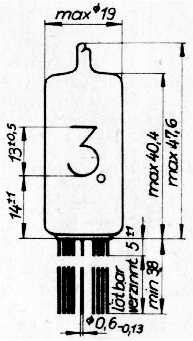

Outline:

Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung / Arrow shows direction of viewing!

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
