GC10/4B (ETL)
Dekatron counting tube


Bi-directional double-pulse decimal counting tube with intermediate outputs.
Neon filled.







The following pictures show the tube spinning.
Of course, only one of the cathodes is glowing, but the shutter speed of the camera generates different pictures:

A normal shutter speed of the camera:

A high shutter speed of the camera:

A low shutter speed of the camera:

By night, with low shutter speed of the camera:

An animation of a spinning Dekatron:

Röhrendaten/Tube Data:

German English
Röhrentyp Tube type   GC10/4B
Hersteller Brand   ETL
Vergleichstypen Substitutes   GC10/4B/L, CV6100, VX9194/4B, CV1739, M2465-401C
Zähl-Richtung Counting direction   bidirectional
Arbeitsweise Operation   double pulse
Art Sort   counting tube with intermediate outputs
Sockel Base   K8A
Fassung Socket   K8A
Nullposition Zero position   Pin 6
Zähl-Schritte Counting steps   10
Anzahl der Hilfskathoden Number of guides   2
Hinweise Remarks   same as GC10B, except that four main cathodes are brought out to separate base pins
Gasfüllung Gas filling   Neon
Röhrendurchmesser maximal Tube diameter max. mm 32.5
Röhrenhöhe maximal Tube height max. mm 103.25

max. Zähl-Geschwindigkeit Max. counting speed kHz 4
Betriebsspannung minimal Supply volt. min. V 350
Betriebsspannung typisch Supply volt. typ. V 400
Brennspannung typisch Maintaining voltage typ. V 190
Anoden bzw. Kathodenstrom min. Anode/cath. current min. µA 250
Anoden bzw. Kathodenstrom typ. Anode/cath. current typ. µA 310
Anoden bzw. Kathodenstrom max. Anode/cath. current max. µA 550
Netzteil Leistung minimal Power supply power min. mW 124
Anodenwiderstand typisch Anode resistor typical 470
Hilfskathodenvorspannnung minimal Guide bias volt. min. V 20
Hilfskathodenvorspannnung Impulsbetrieb typ. Guide bias typ pulse op. V 20-40
Hilfskathodenvorspannnung Sinusbetrieb typ. Guide bias typ sine op. V 9
Hilfskathodenvorspannnung maximal Guide bias volt. max. V 40
Hilfskathodenimpulsspannung Guide signal voltage pulse Vp -120
Hilfskathodenimpulsspannung eff. (Sinus) Guide signal voltage eff. (sine) Veff 60 (55)
Hilfskathodenimpulsdauer minimal Guide signal pulse duration min µs 80
Hilfskathodenwiderstand maximal Guide resistor max. 220
Kathodenwiderstand typisch Cathode resistor typical 33
Kathodenwiderstand maximal Cathode resistor max. 100
Ausgangsspannung Output voltage V 40

Anschlussbelegung: Pinout:
PIN 01 PIN 01   K1,2,4,6,7,8
PIN 02 PIN 02   KD(5)
PIN 03 PIN 03   G1
PIN 04 PIN 04   A
PIN 05 PIN 05   G2
PIN 06 PIN 06   KA(9)
PIN 07 PIN 07   KB(0)
PIN 08 PIN 08   KC(3)

Pinout & Outline:

The GC10/4B Dekatron Spinner by Dieter:

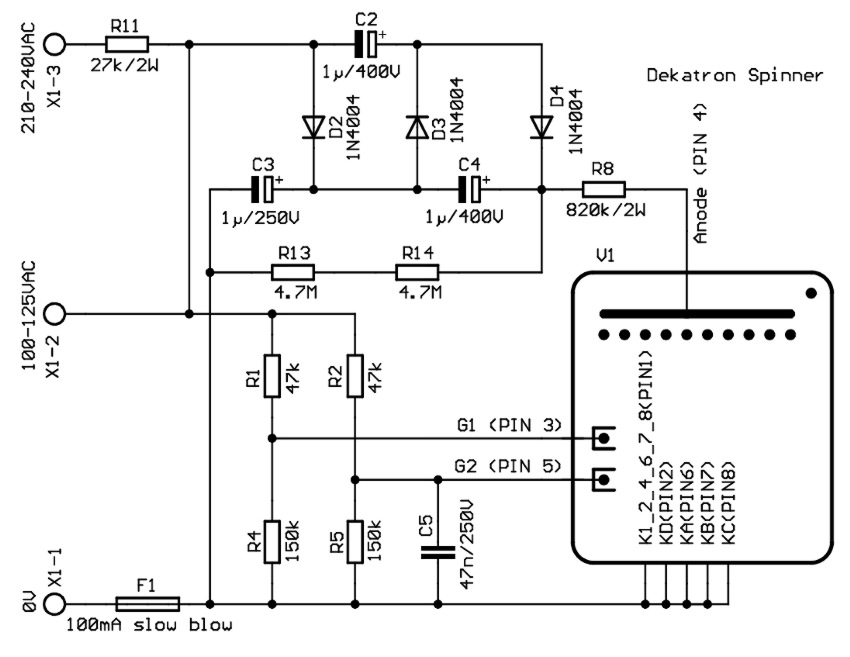

The following schematic shows how to use the tube for a Dekatron spinner.
If you don't know what a Dekatron spinner is click here!
The circuit can be used at 100-125VAC/50-60 Hz or 210-240VAC/50-60Hz.

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
