Footcontroller Section
last update: 2012-04-08


FAQs:

Q: Which foot-controller should I use?
A: You should NOT use a MIDI interface foot controller for your GSP 2101 (Artist, LE, Pro) because that old MIDI protocol is much too slow for the CC (Continuous Controller) commands. You should use a foot-controller with a Digitech interface. These are:

Digitech Control One

Digitech GSP 2101 FC

Digitech 2120 FC
sorry for the bad picture


Digitech Legend II FC


or, the best of all: Johnson J12

Q: What cable must I use for the connection from the GSP2101 to the Control One / GSP 2101 FC / GSP2120FC / Johnson J12?
A: note that it is NOT a MIDI connection but a Digitech interface connection!
A 3 wire MIDI cable does not work!
A 5 wire DIN cable (or MIDI cable) would work, but not in every case. On stage for example you'll get problems with it!!!
You really need a 5 wire cable with screen. (a 6 pole DIN cable with 5 pole plug).
So get a 6 pole DIN cable not a 5 pole!

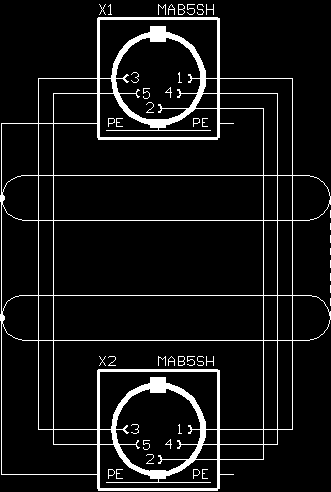

Here is the schematic to make sure:



IF YOU WANT TO BUY THAT CABLE CLICK HERE!!!!

Q: Where can I download the user manuals for the foot controllers?
A:
Here you can download the users manual for the Control One in English.
Here you can download the users manual for the GSP2101FC in English.
Here you can download the users manual for the GSP2101FC in French.
